Extreme Environments. Guaranteed Performance.
When failure is not an option, components and systems must prove their resilience under the most demanding conditions. Zenith Technologies specializes in high-pressure, high-temperature (HPHT) testing, providing critical validation for equipment destined for extreme environments—from deep-sea applications to subterranean exploration.
Leveraging our advanced HPHT chamber, we rigorously test your devices to ensure they meet the uncompromising standards required for mission-critical operations, guaranteeing performance and reliability where it matters most.
Our Advanced HPHT Testing Capabilities

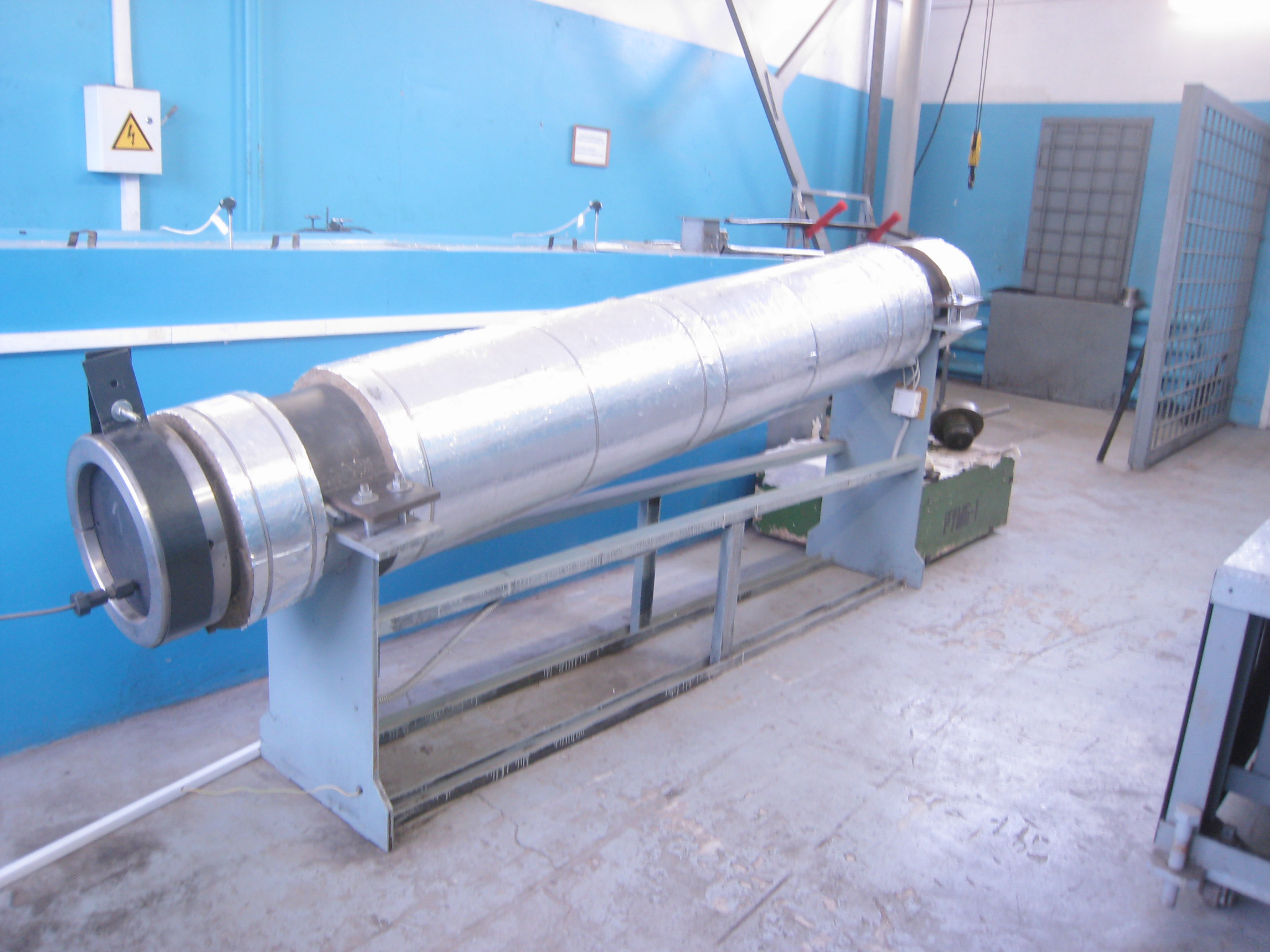

Our state-of-the-art high-pressure, high-temperature testing chamber is engineered to simulate the most challenging operational environments, allowing for precise and repeatable validation of your equipment.
Key Specifications of Our Test Chamber:
- Working Pressure (Max): 100 MPa (1000 bar / approx. 14,500 psi)
- Absolute Maximum Pressure: 130 MPa (1300 bar / approx. 18,850 psi)
- Working Temperature (Max): +150 °C (302 °F)
- Absolute Maximum Temperature: +200 °C (392 °F)
- Usable Chamber Length: 3000 mm (118 inches)
- Internal Chamber Diameter: 220 mm (8.66 inches)
- Maximum Specimen Weight: 150 kg (330 lbs)
- Working Medium: Water
Tailored Testing for Your Critical Components
We understand that every component and system has unique requirements. Our services are designed to be fully customizable to your project’s specific needs.
- Custom Test Protocols: We collaborate with your engineering team to develop precise testing methodologies that accurately simulate your equipment’s intended operational environment and conditions.
- Performance Verification: Validate the functional integrity, material resilience, and operational stability of your devices under sustained high pressure and temperature.
- Data Acquisition & Reporting: Comprehensive data logging and detailed reporting provide verifiable proof of performance, aiding in certification, product development, and quality assurance.
- Applications: Ideal for sensors, electronic assemblies, connectors, seals, subsea components, drilling equipment, and other devices requiring qualification for extreme conditions.
The Zenith Advantage
- Precision Control: Our advanced system allows for accurate and stable control of pressure and temperature profiles throughout the testing cycle.
- Expert Oversight: Tests are conducted by experienced engineers who understand the nuances of high-stress material and component behavior.
- Regulatory Support: Our rigorous testing protocols assist you in meeting stringent industry standards and regulatory compliance requirements.
Test Beyond Limits. Ensure Absolute Reliability.
Don’t leave performance to chance. Partner with Zenith Technologies to subject your critical equipment to the ultimate test of endurance.
