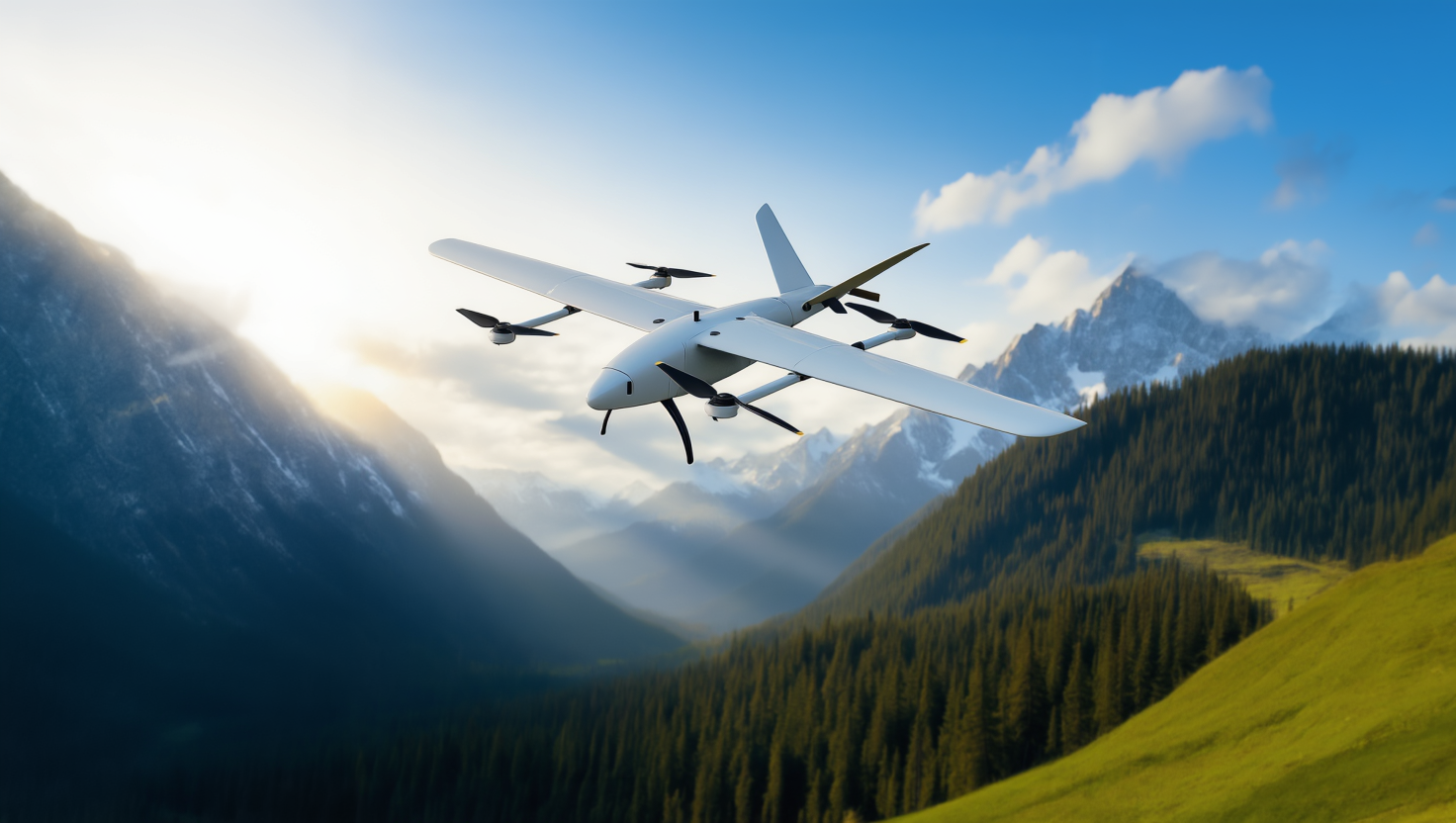

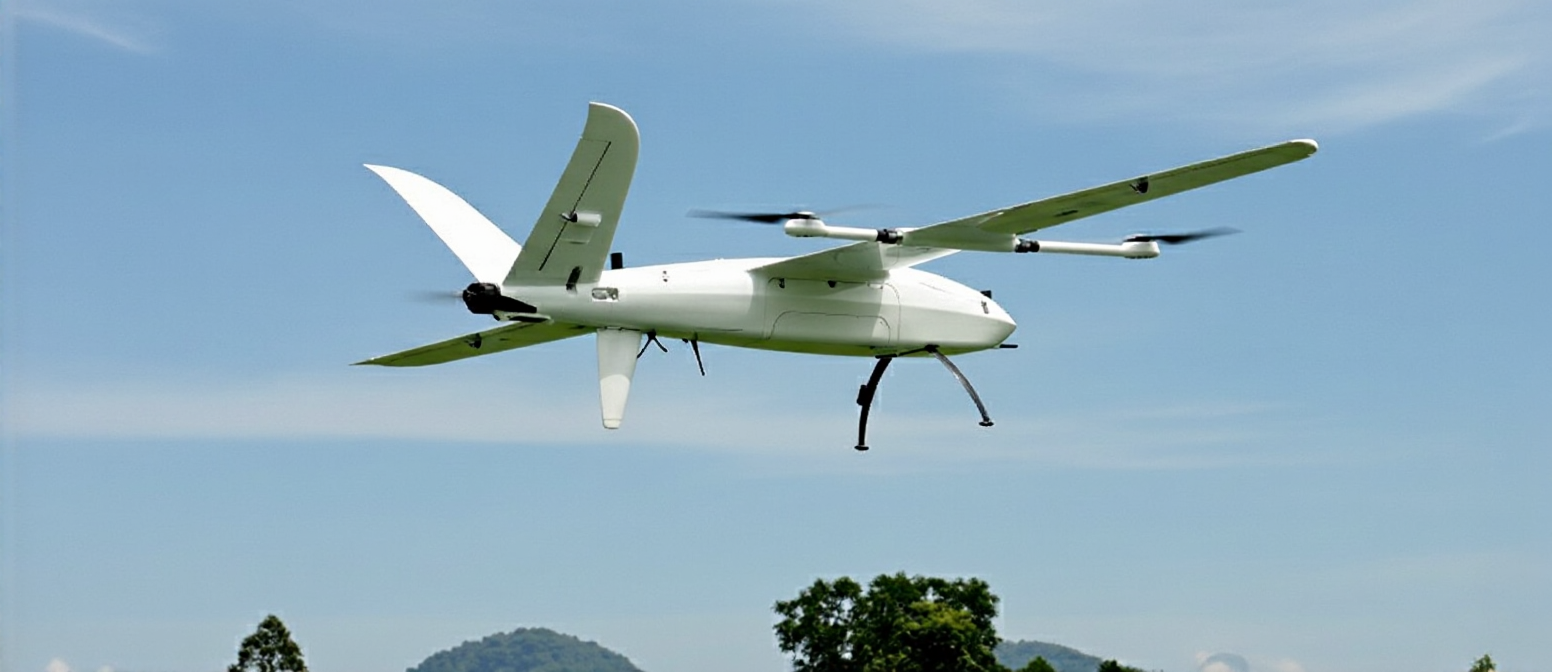

Electric VTOL EV-4: Precision, Endurance, and Silent Power
Zenith Technologies proudly presents the Electric VTOL EV-4, a cutting-edge unmanned aerial system meticulously engineered for precision and operational flexibility. Designed as a fixed-wing VTOL drone, the EV-4 combines the vertical agility of a quadcopter with the efficient, long-range flight of a fixed-wing aircraft, making it an ideal platform for diverse and demanding missions.
The EV-4 is purpose-built for applications requiring quiet operation, precise control, and robust performance, from detailed LiDAR mapping to critical security and surveillance operations.
Versatile Performance for Specialized Missions
The Electric VTOL EV-4 is optimized for key industrial and security applications.
- LiDAR Mapping Excellence: Specifically developed for high-accuracy LiDAR mapping, capturing detailed topographical and environmental data with electric precision.
- Long-Distance Cargo & Transport: Capable of efficient, medium-distance cargo delivery and transport missions with varying payload requirements.
- Security & Surveillance: An exceptional platform for continuous monitoring, coastline patrols, and critical infrastructure surveillance, day or night.
- Flexible Payload Endurance:
- 2kg Payload: Up to 3 hours flight time.
- 6kg Payload: Up to 2 hours flight time.
- 10kg Payload: Up to 1 hours flight time.
Advanced Features for Superior Operation
The EV-4 integrates sophisticated technology to ensure reliable, intelligent, and safe operations in diverse environments.
- Hybrid Flight Dynamics: Utilizing four robust lift motors for vertical ascent and a powerful push-prop fixed-wing motor for efficient horizontal flight, the EV-4 seamlessly transitions for optimal performance.
- Strong Anti-Wind Capability: Thanks to its powerful lift motor configuration, the EV-4 can withstand winds of up to 12 m/s, making it an exceptionally stable platform for challenging conditions like coastline patrols.
- Working Day and Night: Equipped with onboard aviation lights, the EV-4 ensures clear visibility and safe operation during both day and night missions.
- Built-In Landing Assistance: A precision range detection radar device facilitates gentle and safe landings, protecting the drone and its valuable payload.
- Smart Power, Smarter Performance: Powered by the XTurbo Intelligent Battery, a smart system designed for industrial drones, ensuring:
- Real-time BMS monitoring for optimal health.
- Extended lifespan with 400+ charge cycles.
- Smart safety features like auto-balancing and overcharge protection for safer, longer, and more efficient flights.
- Follow Me Feature: The EV-4 can autonomously follow a moving ground or sea-based platform, providing continuous mission support and safe, automated landing upon completion, particularly useful for dynamic maritime surveillance operations.
Technical Specifications (Brief)
| Specification | Value |
|---|---|
| MTOW | 34 kg |
| Wingspan | 4,000 mm (4.0 m) |
| Length | 2,600 mm (2.6 m) |
| Max Payload | 10 kg |
| Endurance (max) | Up to 3.5 hours |
| Transmission Range | 120+ km |
| Cruise Speed | 75-100 km/h |
| Max Speed | 125 km/h |
| Max Service Altitude | 4500 meters ASL |
| Operating Temperature | -5°C to +55°C |
Power Your Mission with Electric Precision.
Discover the versatility and reliability of the Electric VTOL EV-4. Elevate your LiDAR mapping, cargo, and surveillance operations.
