Precision Vision for Welding Excellence.
The Short-Wave Infrared (SWIR) spectrum offers a unique window into the most critical aspects of the welding process. Zenith Technologies’ SWIR Welding Camera system leverages this advanced imaging technology to provide unparalleled visibility through the intense light of the arc, revealing intricate details of the melt pool dynamics, material interactions, and precise joint formation.
Our SWIR camera is an indispensable tool for engineers and quality control specialists, enabling micro-level process control, rapid defect detection, and a profound understanding of weld metallurgy for superior, repeatable results.

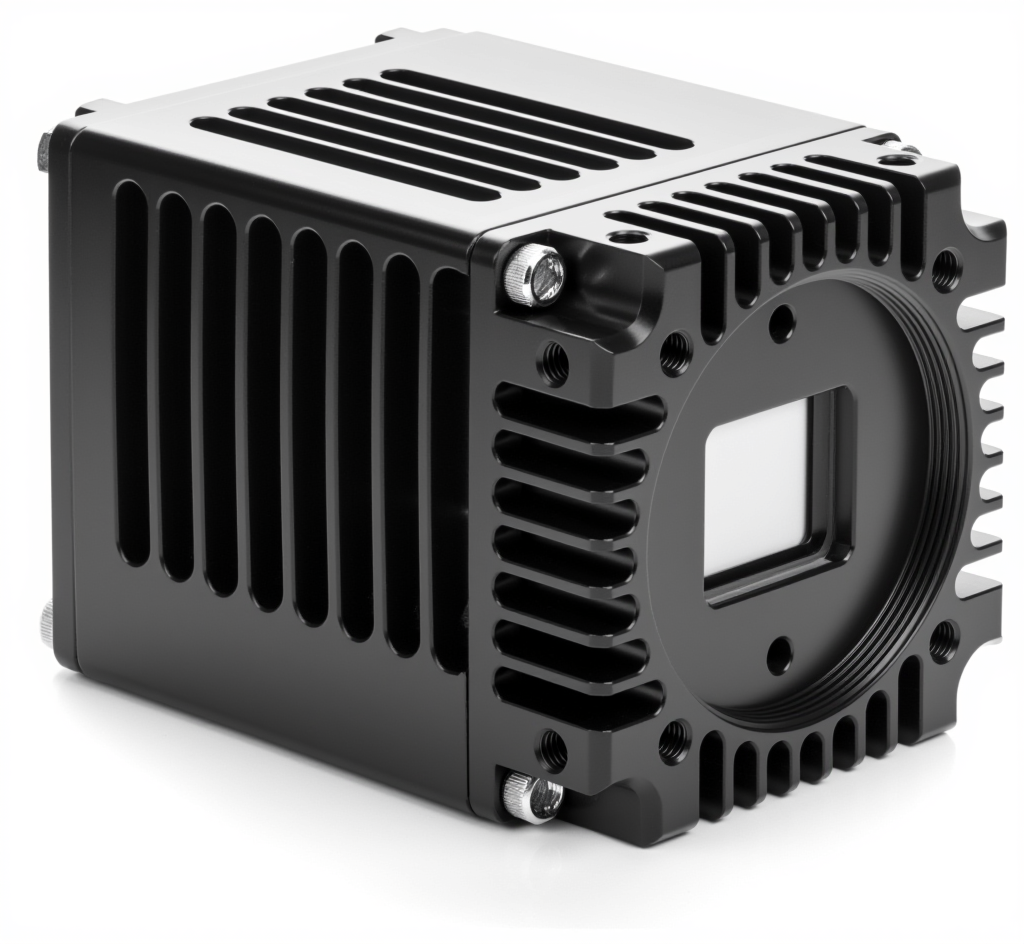

The Zenith SWIR Welding Camera Advantage
Engineered for the highest standards of precision and performance, our SWIR welding camera elevates your welding process control to a new level.

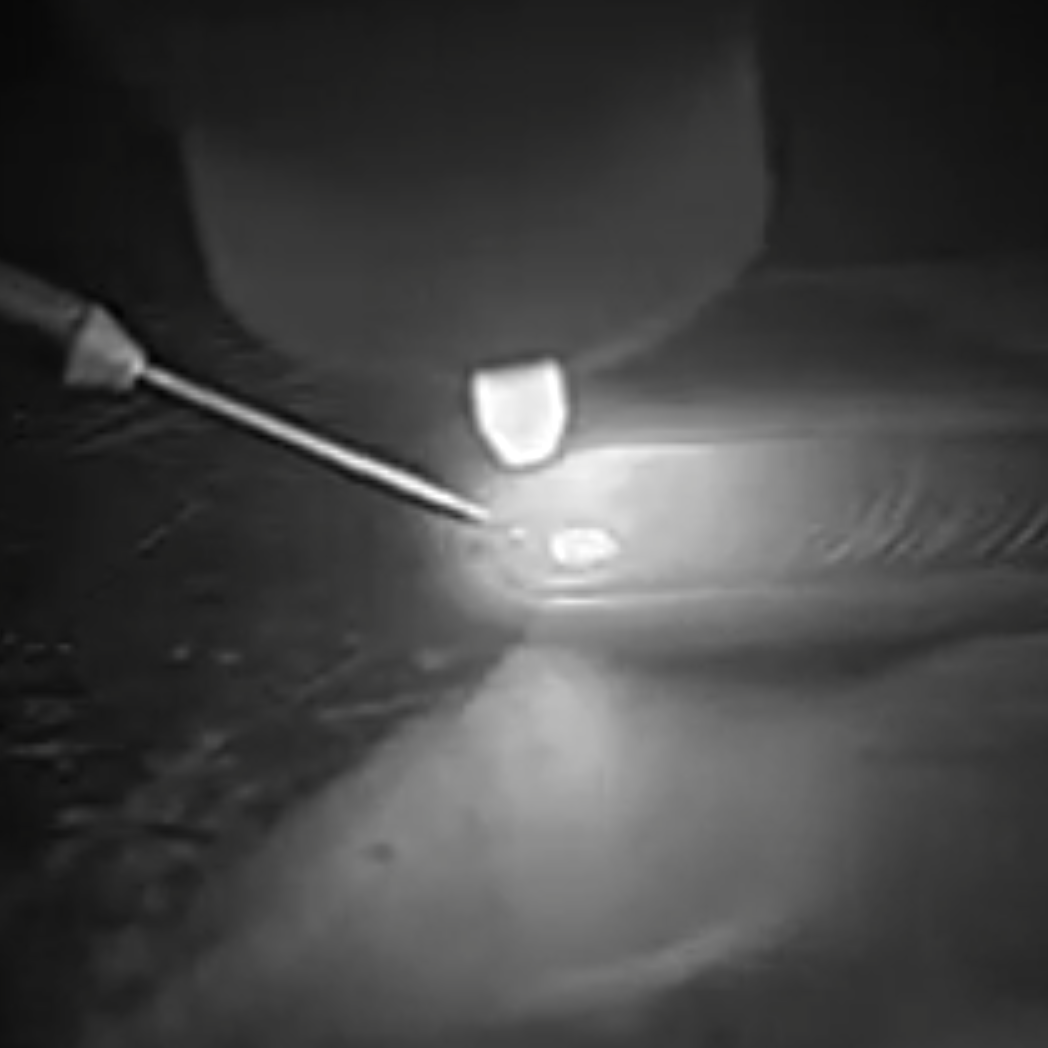

- Exceptional Arc Penetration: Utilizing the SWIR spectrum (0.9-1.7 µm), our camera dramatically cuts through arc glare and spatter, providing a clear view of the melt pool, keyhole, and wire feed with superior contrast.
- Detailed Melt Pool Analysis: Accurately monitor melt pool temperature distribution, stability, and morphology—critical parameters for controlling bead geometry, penetration, and preventing defects like porosity or lack of fusion.
- Material Differentiation: The SWIR band’s ability to differentiate materials based on their emissivity and absorption characteristics offers enhanced insight into material mixing and phase changes during welding.
- Real-Time Process Optimization: Facilitate instantaneous adjustments to welding parameters, ensuring consistent quality and maximizing efficiency in automated and robotic welding cells.
- Advanced Quality Assurance: Provides high-fidelity data for comprehensive post-process analysis, critical for root cause investigations, process validation, and maintaining stringent quality standards.
- Rugged Industrial Construction: Built to withstand the harsh conditions of industrial welding environments, ensuring reliable operation and longevity.
Key Applications
Our SWIR Welding Camera is ideally suited for highly precise and demanding welding applications across various industries.
- Precision Arc Welding (TIG, MIG/MAG): Achieve new levels of control and quality for sensitive arc welding processes.
- Laser Welding: Crucial for monitoring keyhole formation, melt pool dynamics, and ensuring consistent penetration in high-power laser applications.
- Additive Manufacturing (Wire-Arc/Laser): Essential for monitoring layer-by-layer deposition, melt pool stability, and defect detection in advanced manufacturing.
- Aerospace & Medical Devices: Industries where material integrity and absolute weld reliability are paramount.
- Research & Development: A powerful diagnostic tool for optimizing new welding processes and materials.
Reveal the Invisible. Achieve Welding Perfection.
Elevate your welding quality and process control with the advanced insights provided by Zenith Technologies’ SWIR Welding Camera.
For detailed datasheets, technical specifications, integration guides, or any further questions, please contact our team:
